The compact miniature series with an enlarged piston for groundbreaking +400% energy absorption and up to -50% reduced costs per Nm. Equipped with hardened titanium aluminum nitride guide bearings for extreme robustness.
The Mega-Line 0.1-0.2 Miniature series delivers first-class efficiency for highly dynamic miniature applications.
Thanks to the extremely enlarged piston, these miniature dampers absorb up to 4 times more damping energy than comparable products of the same size.
Save real money on your design. The excellent ratio of price to absorbed Newton meters significantly reduces your system costs.
The guide bearing is specially hardened. The piston is coated with a wear-resistant titanium aluminum nitride (TiAlN) layer – for ultra-hard running behavior.
The hardened exterior is protected with our exclusive ProSurf surface protection. This ensures maximum corrosion resistance and mechanical protection.
The integrated fixed stop at the end of the stroke offers optimal overload protection for the shock absorber and the damping system components.
The series fully complies with European Directive 2002/95/EC. Perfectly suited for demanding, environmentally conscious B2B equipment manufacturing.

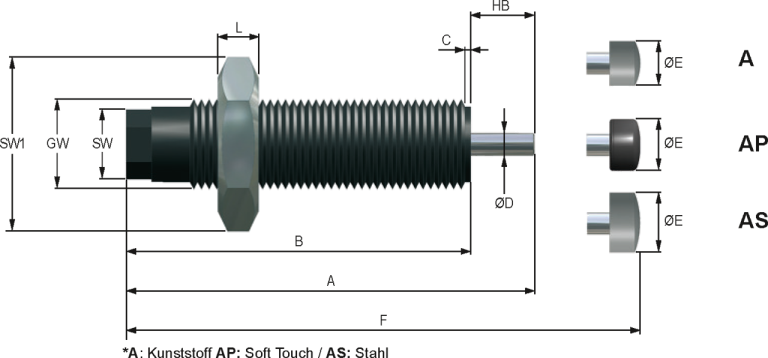

The exact specifications and mechanical dimensions from the InDesign original.
Model Series 0.1: 2 Nm
Model Series 0.15: 6 Nm
Model Series 0.2: 10 Nm
Each miniature shock absorber is supplied standard with 1 lock nut.
Extensive accessories such as alternative stop caps (AK 1, AK 2) can be found on catalog page 25 or directly from us.
